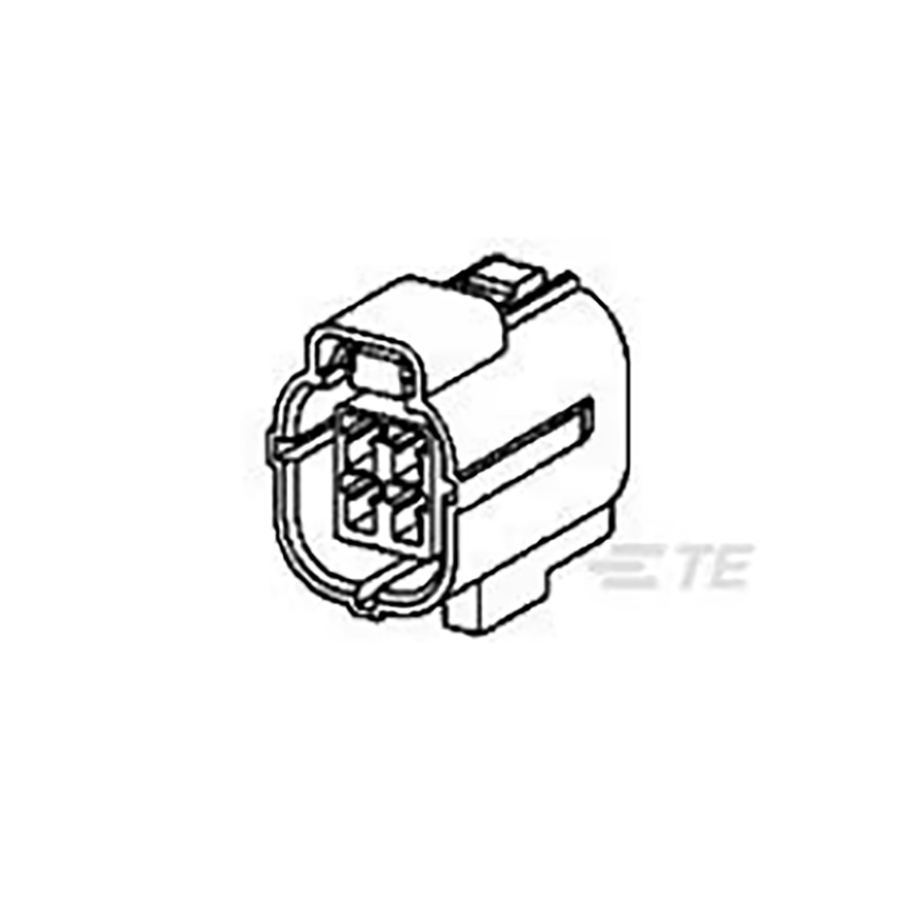

174262-2
Manufacturer:
TE Connectivity
Mfr.Part #:
174262-2
Datasheet:
Description:
Headers and Wire Housings Free Hanging Plug, Socket Number of Positions:6 Pitch:4.8 mm
| Parameter | Value |
|---|---|
| Length | 27.36 mm |
| Width | 25.4 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Height | 29.3 mm |
| Material | Polyester |
| Packaging | Bulk |
| Depth | 27.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | wire |
| Pitch | 4.8 mm |
| Flammability Rating | UL94V-2 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| ELV | Compliant |
| Connector Type | Plug, Socket |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 5.6 mm |
| Insulation Material | Thermoplastic |
| Housing Material | PBT |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | Black |
| Insulation Diameter | -2.6 mm |
